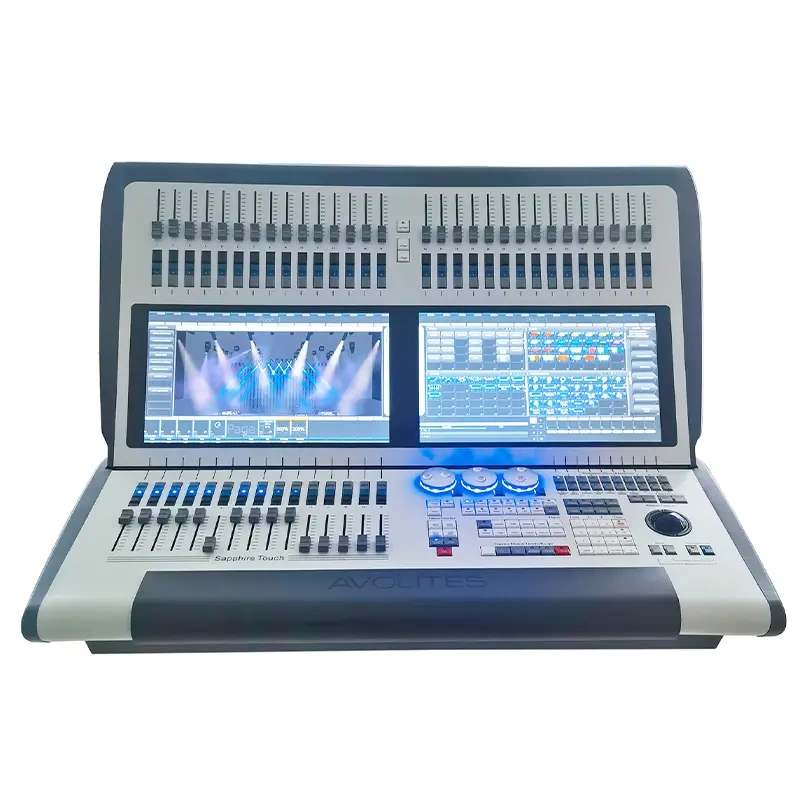

| Titan Windows operating system |
| i5 6500 CPU, 8G memory, 120G solid state drive |
| Built-in 8 languages, support Chinese menu display |
| Built-in 2 15.6-inch capacitive widescreen touch screens, electric lifting screen |
| 45 electric push rods for page turning, 20 macro buttons |
| Built-in high-power UPS power supply, the console can be started without 220V AC power supply |
| Built-in 16 DMX output ports |
| 1 LTC time code trigger port |
| Support Titan network expansion, expandable to 32768 channel parameters |
| 3 backlit high-precision encoder wheels |
| 20 custom programmable macro function execution keys |
| 4 Ethernet interfaces, 3 USB interfaces, 2 work light interfaces |
| Built-in independent HIFI-level sound card with isolation to solve the problem of poor sound quality of the motherboard integrated sound card and no isolation AC noise interference |
| 1 mobile phone fast charging interface, 1 HDMI interface |
| 1 X/Y axis trackball for controlling lighting fixtures |
| Supports SMPTE and MIDI time codes |
| Built-in 3D visualization software in the console |
| One-key restore system |
| Air box size: 93×34×84CM/36.6×13.4×33.1IN |
| Gross weight: 70KG/154.4LB |
